Features:
- Product Name: Stage Lighting 50mm Diameter DMX Digital Addressable LED Pixel Standing Tube Light
- Size: D50MM x L1000MM
- Shape: Tube
- Type: LED Pixel Tube
- Pixel Quantity: 16/20/24 pixels per meter
- Power Consumption: 24W
- Shell color: Milky/Clear/Black
Product Description:
Different Cable design
-One input connector, combined with T-joints, allows multiple tubes to be daisy-chained.
-Input&output connectors out, connect directly
.

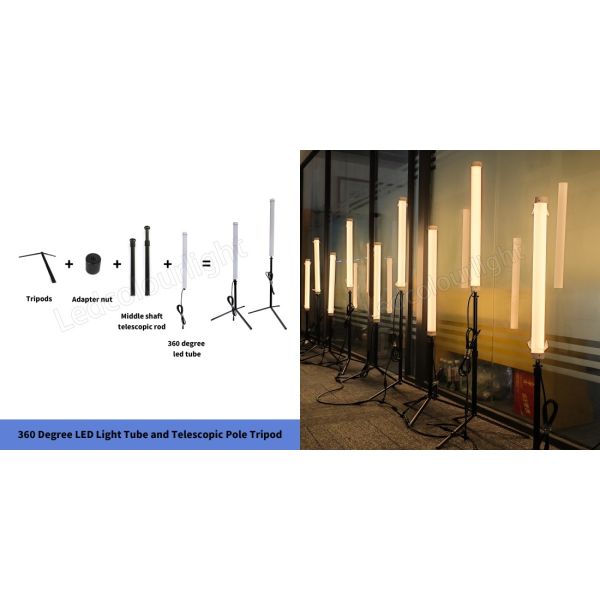

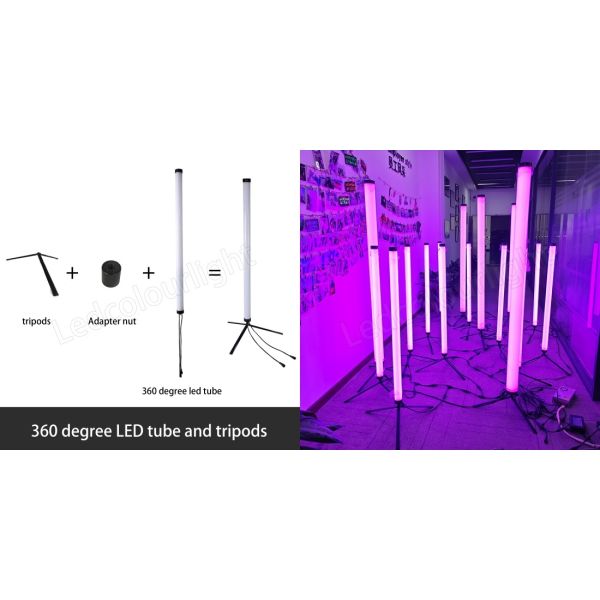

Structure1:One set conclude 1pcs DMX 3D tube light, 1 pcs tripod, and 1pcs adapter nut.
Structure2:One set conclude 1pcs DMX 3D tube light, 1 pcs tripod, 1pcs adapter nut, and 1pcs telescopic rod. The supporting height can be adjusted from 30cm to 60cm.
Connection Diagram

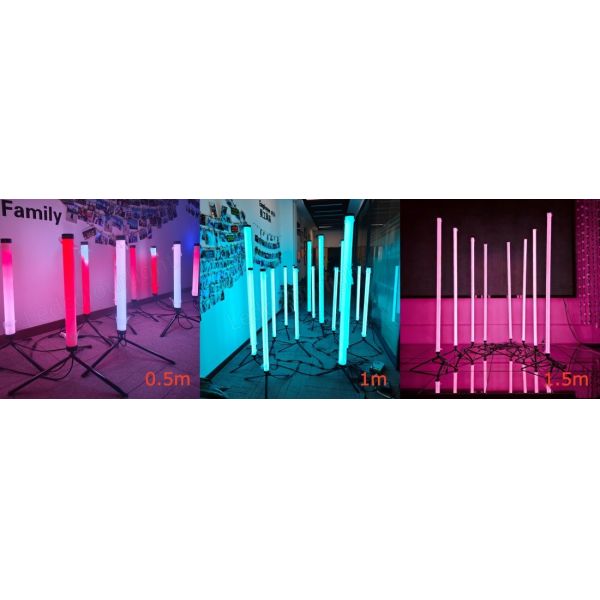

Different Lengths: four regular length options: 0.5m/1m/1.5m/2m;other lengths support to be customized
Technical Parameters:
|
Model
|
LCL-RGB-3DVT50-1000-DMX-24V-9616
|
LCL-RGB-3DVT50-1000-DMX-24V-12020
|
LCL-RGB-3DVT50-1000-DMX-24V-14424
|
|
Size
|
1000×φ50mm
|
1000×φ50mm
|
1000×φ50mm
|
|
Led QTY
|
96PCS
|
120PCS
|
144 PCS
|
|
LED Pixels
|
16Pixels
|
20Pixels
|
24Pixels
|
|
Emitting Angle
|
360°
|
360°
|
360°
|
|
Power
|
21W
|
26W
|
32W
|
|
Input Voltage
|
DC24V
|
DC24V
|
DC24V
|
|
Control
|
RDM/DMX/SPI
|
RDM/DMX/SPI
|
RDM/DMX/SPI
|
|
Address Setting
|
Manual/Auto
|
Manual/Auto
|
Manual/Auto
|
|
Operating Temperature
|
-20~50ºC
|
-20~50ºC
|
-20~50ºC
|
|
storage Temperature
|
-40~80ºC
|
-40~80ºC
|
-40~80ºC
|
|
IP
|
IP45 / IP65
|
IP45 / IP65
|
IP45 / IP65
|
Application:

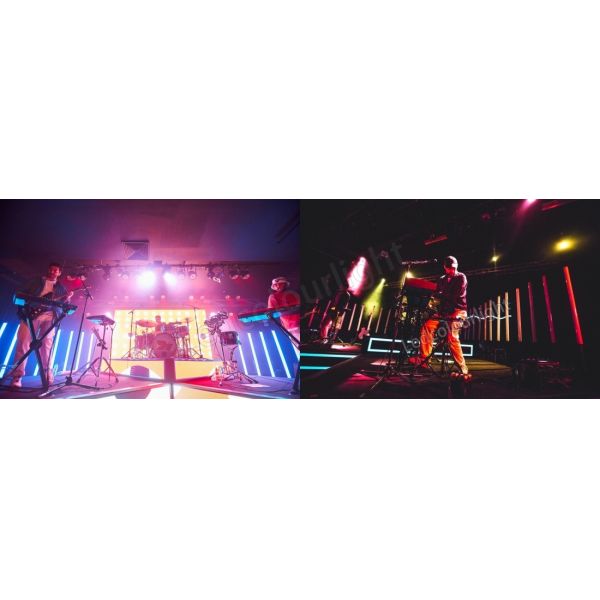

-For entertainment venues, including nightclubs, theaters, and concert stages, where dynamic and eye-catching lighting can enhance the atmosphere and audience experience.
-For event decorations, such as festivals, weddings, and corporate events. Its vibrant colors and programmable pixels enable users to tailor lighting displays to specific themes or branding requirements.
Certification:
Our products are certified with CE and RoHS, fully compliant with EU safety and environmental standards, ensuring reliable quality for global markets..
FAQ:
1. Q: Are you a factory or trading company ?
A: We are a factory as a munufacturer.
2. Q: What your company produces mainly ?
A: Ledcolourlight mainly specialized in DMX Lighting products, and also provide a full dmx lighting solution for projects.
3. Q: How can I get some samples ? Delivery time for samples?
A: If samples in stock, can be sent out right away.
If no samples in stock, take 5-7 business days for production.
4. Q: MOQ?
A: 2 pieces per one model at least.
5. Q: OEM and ODM available?
A: Yes.
6. Q: Delivery time for big order?
A: For small order, 3-7 business days. For big order, 5-12 business days.
7. Q: Payment Terms?
A: PayPal (Less than 500USD), T/T, Western Union, L/C
8. Q:Warranty?
A. All products we sell are in good quality and have been tested before they are shipped out. We offer 2 years Warranty.
9. Q:How About I had never bought any product from China?
A: We will guide you step by step, any possible potential cost will be listed, and provide all info if needed
